BX616 4 Gas Detector

BX616 4 Gas Detector
Calibration point adjustable
Target Gas: LEL, H2S, CO, O2
Accuracy: ≤±5% FS
Alarm Sound: ≥85dB @ 1m
Power source: DC3.7V 1800mAh Lithium battery
Charging time: 4h~6h
Working time: ≥8h(continuous work, 20℃)
Ingress Protection: IP66
Share With:

Overview

Description

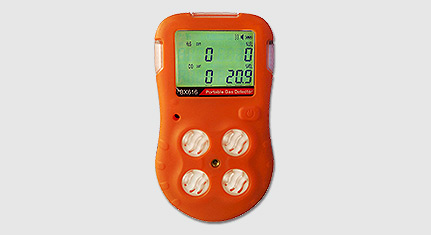

BX616 4 gas detector could detect combustible gas, O2, CO and H2S simultaneously. It has a easy to read display of gas concentration.

Applications

BX616 is widely used in the area where explosionproof is required or toxic gas leaks, like underground channels or mining industry, so as to protect the workers’life and avoid damage on the relevant equipment.

Features

portable multi gas detector

CSTN colorful LCD, more abundant and clear

Compact design, easy carrying

High strength engineering plastics and compound antislippery rubber; high strength, waterproof, dustproof and explosionproof



Technical Data

Working Method: Natural Diffusion
Gas sensor type: Catalytic or electrochemical
Target gas: LEL, H2S, CO, O2
Accuracy: ≤±5%FS
Response Time: ≤30s
Indication: LCD displays realtime and system status
Working Environment: Temperature: -20℃~50℃, Humidity: <95%RH (no dews)
Power Source: DC3.7V Lithium battery, 1800mAh
Charging Time: 4h-6h
Working Time: ≥ 8h (continuous work, 20℃)
Sensor Life: 2 years
Explosionproof grade: ExiaIICT4
Protection Grade: IP66
